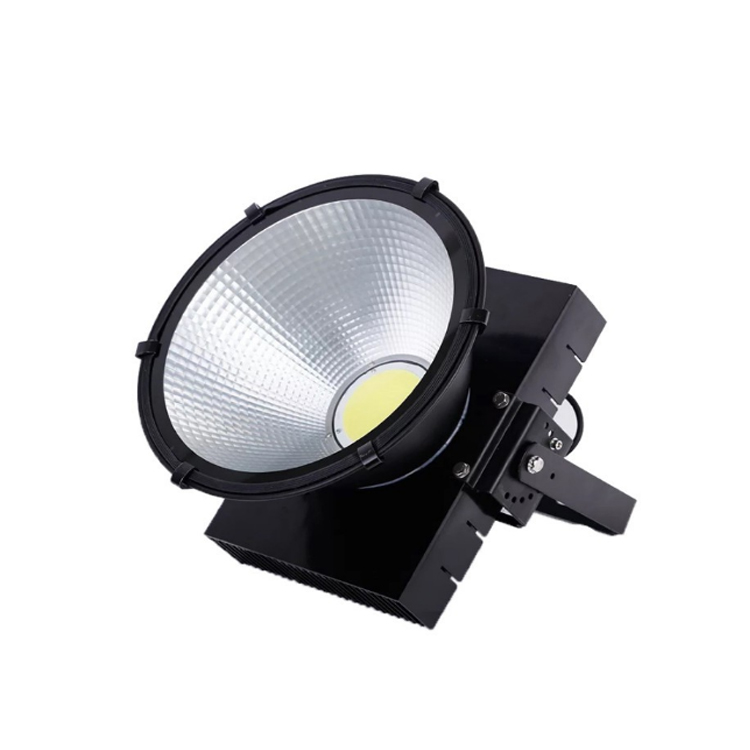

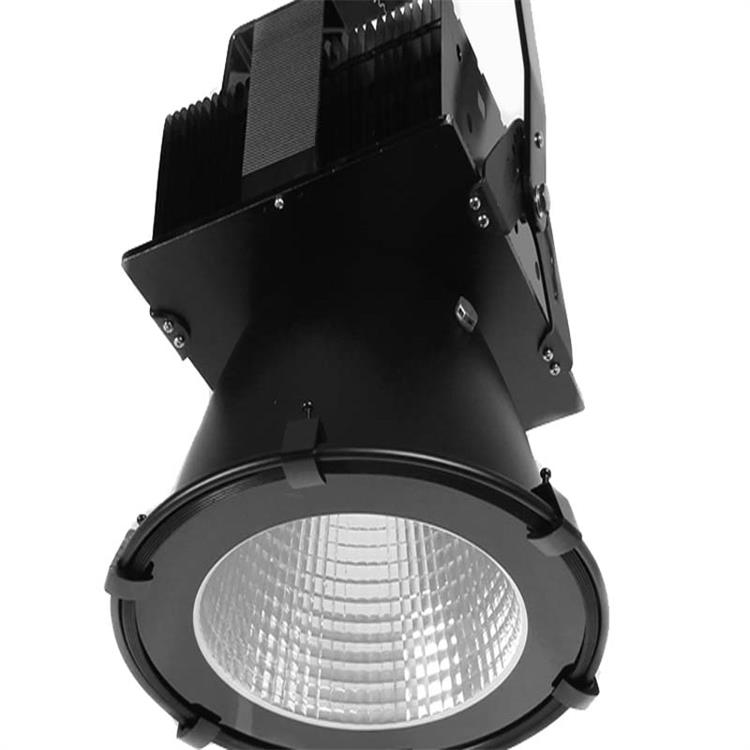

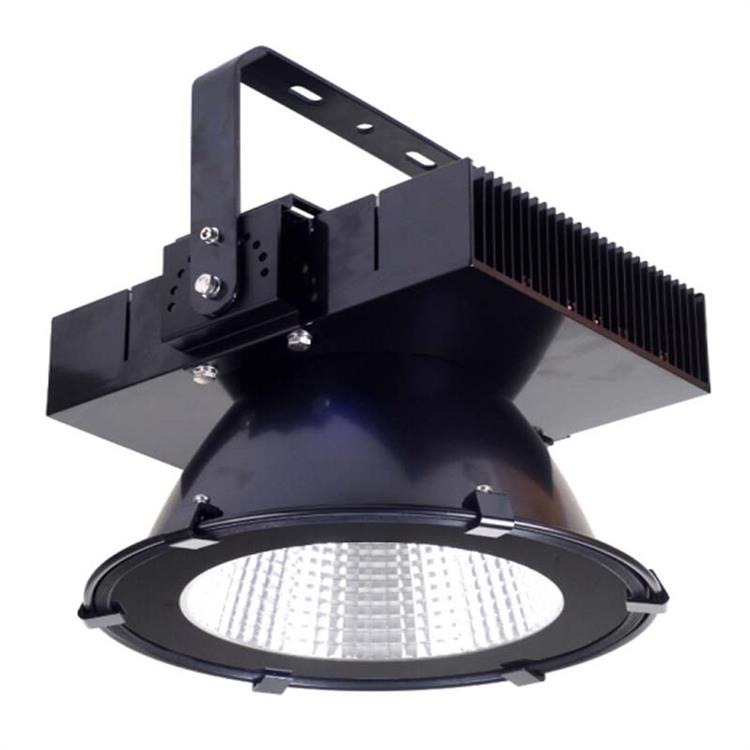

Tower Crane Lamp

Super Brightness High lumen Outdoor Ip65 Waterproof park lamps Special tower crane lamp Led tower flood Light for the stadium.
Quality led source: high brightness, low heat production, high color rendering, low flicker, free maintenance, long lifespan.
Copper conduit: Excellent heat conduction ability to transfer the heat to the fin efficiently, prolonging the lifespan.
Protection grade: IP65
HDT technology: New technology adopted which transfer the heat to copper conduit rapidly and efficiently.
Lampshade: fin-type lampshade distributes the heat well and enhances efficiency.
Tempered glass: Thick tempered glass mask copes with any harsh condition with high brightness.
Heat dissipation: Intensified fin designed for air circulation efficiency, making sure the cooling airflow.


Product Features:

Power 100W 200W 300W 400W 500W
Luminous Flux 13000LM 26000LM 39000LM 52000LM 65000LM
Dimension 374*323*459mm 374*266*467mm 374*323*459mm 374*323*497mm 374*380*497mm
Voltage 100-277V 50/60Hz 100-277V 50/60Hz 100-277V 50/60Hz 100-277V 50/60Hz 100-277V 50/60Hz
LED Driver MW ELG-100 MW ELG-200 MW ELG-300 MW ELG-200*2 MW ELG-240*2
LED Chip Lumileds Lumileds Lumileds Lumileds Lumileds
LED light source 3030(120pcs) 3030(210pcs) 3030(320pcs) 3030(400pcs) 3030(480pcs)
Luminous Flux 130lm/w 130lm/w 130lm/w 130lm/w 130lm/w
(Ra>) 70/80 70/80 70/80 70/80 70/80
Power factor PF>0.98 PF>0.98 PF>0.98 PF>0.98 PF>0.98
IP Rating IP65 IP65 IP65 IP65 IP65
Working Temp -40°C~ 55°C -40°C~ 55°C -40°C~ 55°C -40°C~ 55°C -40°C~ 55°C
Color temperature 3000k,4000K,5000K,5500K,5700K,6500k
Beam angle 25°/45°/60° Degree
certificate CE Rosh
Warranty 5yers 5yers 5yers 5yers 5yers
Material die-casting aluminum; plastic


Used in building,park area,construction site,square,landscape,tower crane,business place,convention center and so on.

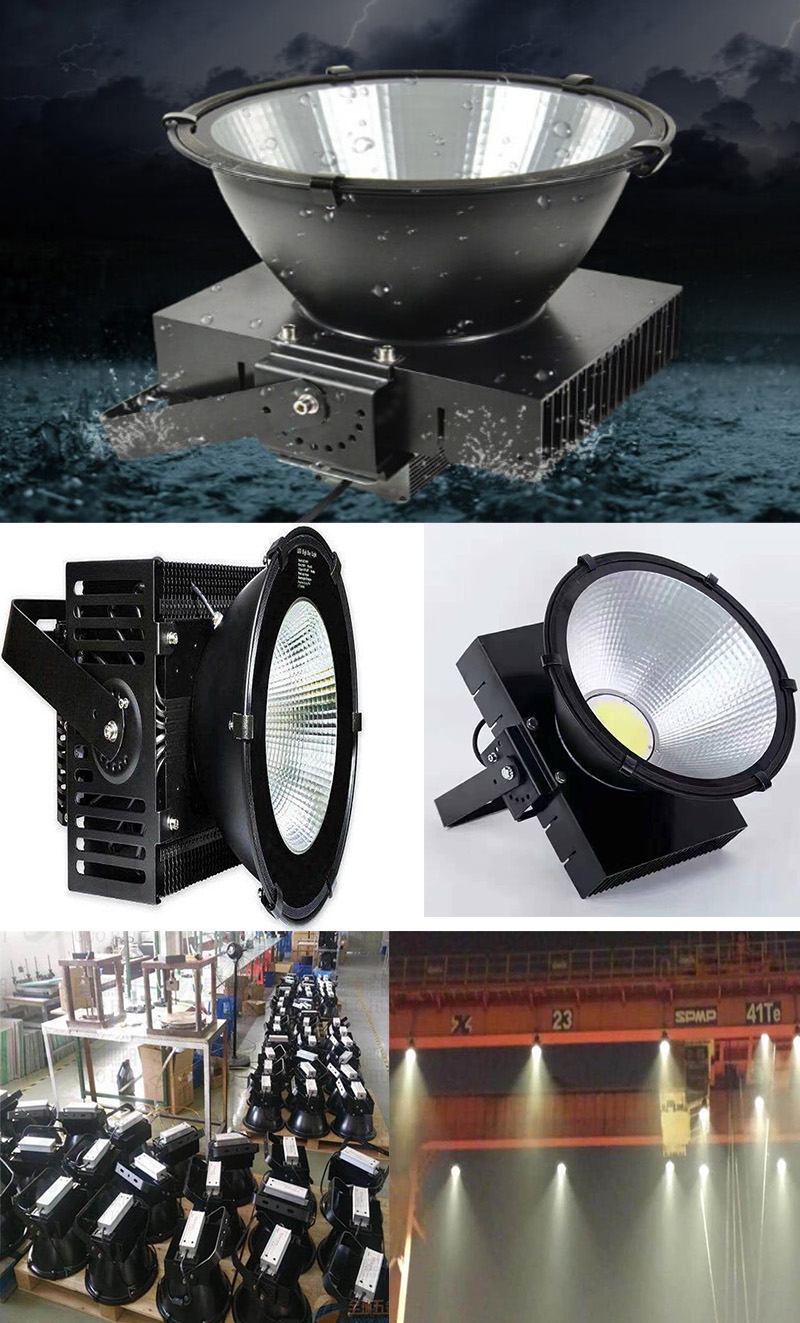

Warranty:5 yeartower crane lamp 5a
